///Biodex 820 3D C-Arm Table

Biodex 820 3D C-Arm Table

  • Available New & Refurbished
  • Hospital Grade C-Arm / Imaging Table
  • Designed For Use With 3D C-Arms
  • 5 Movements
  • 500 lb Patient Weight Capacity
  • 2 Year Warranty (new only)

Brochures:

Biodex C-Arm Table Brochure

Description

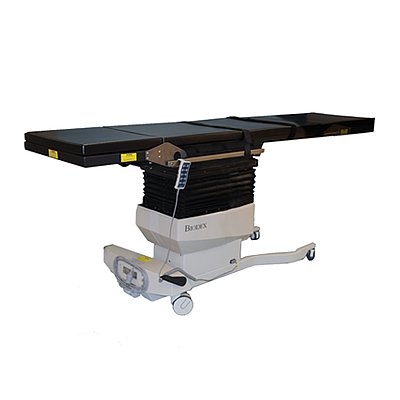

Biodex 820 3D C-Arm Table

Designed to function with a 3D C-Arm.

  • Large radiolucent area, total length 51.5″
  • Five-axis motorized tabletop positioning
  • Low attenuation carbon fiber tabletop
  • Convenient positioning, hand-held and foot-operated controllers
  • Smooth starts and stops programmed into all motorized movements
  • Low profile base for C-Arm clearance
  • Exceptional platform for pelvic Brachytherapy and 3D Urology procedures
  • Ideal for 3D imaging of breast and thorax
  • Accessory rails
  • Both AC and battery power are standard

Designed and equipped for use with 3D C-Arm for seed implantation, urology, thoracic/vascular and other general C-Arm applications. The narrow, low-attenuation carbon fiber tabletop is cantilevered to accommodate portable 3D C-Arms. The functional design provides complete access with minimal radiation exposure to clinicians.

The Equipped MD Difference.

At Equipped MD we guarantee the best possible pricing on all Biodex products. We will meet or beat any competitors quote, and offer our “wholesale direct” pricing right out of the gate. This allows us to offer you exceptional value, and custom tailor the pricing to your needs & budget. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.

Specifications:
  • Dimensions: 103.75″ l x 26″ w (264 x 66 cm) with OR accessory rails
  • Tabletop: 103.75″ l x 24″ w (264 x 61 cm) includes head and leg extension
  • Radiolucent Area:
    – 3D Imaging Area: 22.5″ l x 24″ w (57.1 x 61 cm)
    – Radiolucent Extension (Fiberesin™, non-3D): 29″ l x 22.5″ w (73.6 x 57.1 cm)
  • Total Radiolucent Area (combined): 51.5″ l (131 cm)
  • Head-End Extension (non viewable): 18.2″ l x 24″ w (46 x 51 cm)
  • Base Clearance to Floor: 1.5″ h (4 cm)
  • Tabletop Material: Carbon fiber
  • Mattress: Vinyl covered, Seamless, 2″ thick (5 cm)
  • Motions:
    – Height Adjustable: 34″ h to 44″ h (86 to 112 cm)
    – Tabletop X Motion (head to toe): 10″ (25 cm)
    – Tabletop Y Motion (side to side): 10″ (25 cm)
    – Trendelenburg: 0° to 20°
    – Reverse Trendelenburg: 0° to 20°
    – Lateral Roll: 0° to 20°
  • Controls:
    – Hand Control: Activates All Motions
    – Foot Control: Activates All Motions
  • Wheels:
    – Head End: 3″ (7.6 cm) swivel casters, integral locking system on base
    – Foot End: 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails, 1.125″ x .375″ (2.86 x .95 cm). Head-End 30″ l (75 cm); Foot-End 7.75″ l (20 cm)
  • Patient Capacity: 500 lb (227 kg); weight tested to four times the patient load rating.
  • Power: 115 VAC or 230 VAC and battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
  • Weight: 542 lb (246 kg)
  • Shipping Weight: 684 lb (310 kg)
  • Certifications: ETL and cETL listed to UL 60601-1, CAN/CSA® C22.2 No.: 601.1-M90, EN 60601-1 and IEC- 60601-1-2:2001-09
  • Warranty: Two years parts and labor

Additional information

Brand

Biodex

Model

820 3D C-Arm Table

Movements

Height Trendelenburg Lateral Tilt Longitudinal Travel Lateral Travel
