- Brand NEW
- Comparable To The Ziehm Solo FD or OEC One
- Wide Reaching Fuji Service Networks
- Low-Cost Extended Service Contracts
- 1.5K x 1.5K Image Resolution Flat Detector
- 27″ 4MP LCD Monitor
- Ideal for Pain Management or Orthopedics
Brochures:
Brochures:

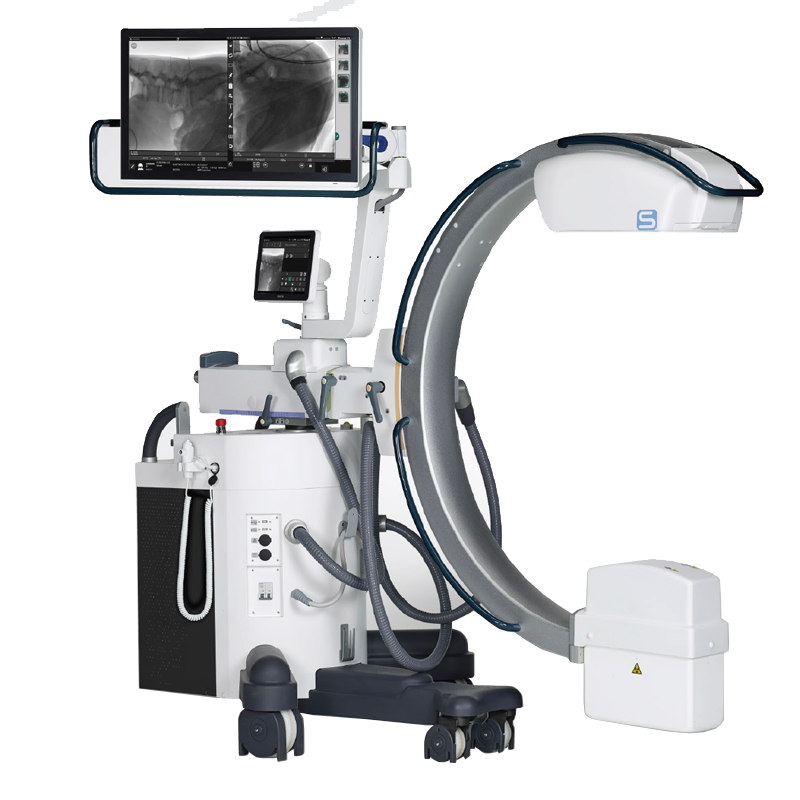

“Discover unparalleled precision and superior image quality with the Fuji Persona CS Compact Surgical C-Arm, a breakthrough in the world of medical imaging. Specifically engineered with a 21cm cesium iodide (CsI) flat panel detector, this advanced Fuji C-Arm solution caters to a wide variety of surgical procedures.
Renowned for its unique blend of ultra-low dose and high-quality fluoroscopy, the Fuji Persona CS C-Arm stands tall among its competitors. This exceptional system provides multiple exposure modes, delivering diverse imaging solutions tailored to your specific needs. An optional vascular package is also available for those seeking to expand their capabilities even further (sold separately).
The Persona CS C-Arm not only excels in functionality but also offers top-tier visualization features. It comes equipped with 21cm cesium iodide (CsI) flat panel detector and cutting-edge 27″ 4MP onboard monitor for clear, detailed imaging. The incorporation of a removable grid and dedicated ‘radiography mode’ ensures high-quality still imaging at your fingertips.
When it comes to easy navigation, precise positioning, and optimal imaging, trust the Fuji Persona CS C-Arm. Experience the future of surgical imaging today.”
DISPLAY UNIT:
Maximize your image viewing, editing, and post-processing capabilities with our built-in 27″ touchscreen monitor, a standout feature of the Fuji Persona CS C-Arm. This highly intuitive interface is conveniently mounted on an adjustable articulated arm, offering both height and angle modifications to suit your viewing preference.
Engineered for exceptional ergonomics, this slimline monitor extends sideways, ensuring maximum viewing clarity without compromising operator sightlines. Experience enhanced imaging control and visibility, all in the comfort of your customized viewing position.
FLAT PANEL:
Dive into the world of advanced imaging with the Fuji Persona CS C-Arm, offering your choice of a 21cm or 30cm Cesium Iodide (CsI) flat panel detector. This sophisticated imaging solution brings together a dedicated radiography mode and a removable grid to provide unparalleled imaging performance.
With the added capacity for fluoroscopic imaging at a stunning rate of up to 30 frames per second, the Persona CS stands as an industry leader. Experience superior imaging clarity while enjoying the compact footprint of our state-of-the-art system.
ABSOLUTE OPERABILITY:
Experience versatile command over exam parameters with our multi-touch operator console, conveniently mounted on the Fuji Persona CS C-Arm. This innovative design allows for control access from any side and includes a live image display for real-time monitoring and adjustments.
MODULATED POWER:
Boasting a robust 5kW onboard generator, the Fuji Persona CS C-Arm delivers more than double the power of conventional compact c-arms. This impressive power capacity enhances image quality and ensures superior x-ray penetration, accommodating patients of all sizes with ease.
COMPACT DESIGN:
A large-diameter yet lightweight mobile solution, designed for effortless access to the operating table. With its hassle-free repositioning on a compact 2-in-1 platform, enjoy seamless system maneuverability. The color-coded system locks further simplify operation, enabling a smooth, user-friendly experience.
ORBITAL ROTATION:
Experience the convenience of our extensive orbital rotation range, spanning from +65° to -95°, with the Fuji Persona CS C-Arm. This wide range allows for effortless oblique projections without the need to reposition the stand around the operating table.
ANGULAR ROTATION:
Immerse in the agility of the Fuji Persona CS C-Arm, offering precise movements and broad angles exceeding +/- 210° around and in front of the patient. Experience enhanced maneuverability, designed for your convenience and patient’s comfort.
UP/DOWN MOVEMENT:
Prioritizing operator comfort, the Fuji Persona CS C-Arm offers an impressive vertical movement range of 450mm. Enjoy ease and flexibility as you operate, with our design that’s tailored to your comfort.
Equipped MD is a leading distributor of Fuji surgical c-arm systems. We are happy to offer the all-new Fuji Persona CS c-arm to our customer base as we believe it’s is a great fit for top-tier pain management and orthopedic clinics that are looking to free up space with its compact design, and high-quality imaging output. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.
C-Arm Feature |
Specifications |
---|---|
X-Ray Generator |
Power: 5kW max kV:120kV max mA (pulsed fluoroscopy): 50mA max mA (radiography mode): 50mA |
X-Ray Tube |
Model: Rotating Anode |
Exposure Modes |
High quality pulsed or continuous fluoroscopy Road Mapping mode |
Flat Panel Detector |
Technology: CsI coupled to TFT matrix aSi |
Image Quality |
DQE: 0 lp/mm – 80% |
Anti-scatter x-ray grid |
Application: User Removable |
Laser Localizer Option |
Operation: Cross light on flat panel and x-ray tube side |
Operator control panel |
Multi-Touch , Color 12,5” LCD panel |
Onboard Monitor |
Multi-Touch Projected capacitance touch screen |
Optional Wireless Viewstation |
Monitor: 24”, Medical Grade Full HD Lithium Ion Battery with Supplementary wired power NDS ZeroWire G2 Wifi Transmitter and receiver Operating Range: Ø10m Weight: 8kg |
Core Clinical Applications |
Orthopedic |
DICOM Compatibility |
Dicom Modality Worklist |
Brand | Fuji |
---|---|
Model | Persona CS |
C-Arm Size | Compact – 1pc Design |
