GE OEC Elite CFD C-Arm

  • Fully Refurbished
  • Sixth Generation OEC C-Arm System
  • GE OEC C-Arms Are The Industry Standard Which All Other Systems Are Compared To
  • Rotating Anode X-Ray Tube
  • 1K x 1K Image Resolution
  • Digital CCD Camera
  • 32″ LED Lit Flat Panel Monitor
  • 21cm and 31c Flat Detector Options
  • Standard “C” and Super “C” Options

Brochures:

GE OEC Elite CFD Tech Specs

Description

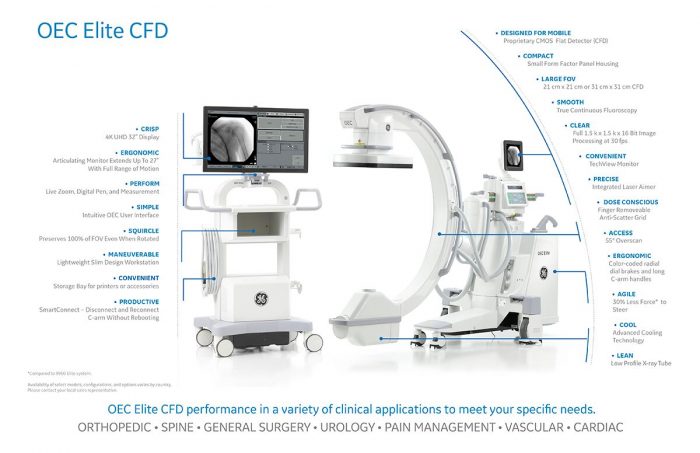

GE OEC Elite CFD C-Arm

The GE OEC Elite CFD C-Arm Is GE’s Latest C-Arm Offering and Is GE Image Intensifier version of the Elite system (Looking for the I.I. version? See it HERE)

Like the GE OEC 9900 before it, the new GE OEC Elite CFD takes the same popular feature sets and builds upon them to offer an upgrade package. The biggest difference with this sixth generation GE OEC c-arm is the addition of a Flat Panel Detector verses the older style Image Intensifier and when combined with the new 32″ LED display offers greatly improved image quality.  This system is ideally suited for a range of surgical needs including orthopedics, gastrointestinal, endoscopic, urologic, neurologic, critical care, emergency, and vascular procedures.

Benefits

Renowned imaging quality

  • Enhanced planning with Live Zoom, Digital Pen, measurements and annotations
  • Automatic imaging profiles, including General HD, help accentuate critical anatomy
  • TrueView low-profile X-ray tube housing allows the detector to be closer to the anatomy creating up to a 22% larger field of view**

Enhanced user experience

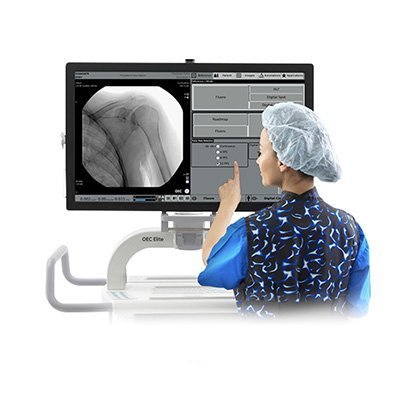

  • 32″ UHD 4K monitor that extends up to 27″ for easy surgeon viewing
  • Easy C-arm maneuverability requires 30% less force to steer*
  • Simplified user interface with fewer clicks and more active icons*
  • Lightweight workstation with SmartConnect

Intelligent Dose Control

  • More default settings for procedure or user preference*
  • Six dose control options that can be used alone or in various combinations: Digital Spot, Digital Cine Pulse, High Level Fluoroscopy, Standard Fluoroscopy, Low Dose, and Pulse
The Equipped MD Difference.

Equipped MD offers all configurations of the GE OEC Elite CFD and refurbishes everything in-house using our 25 years of c-arm refurbishing experience. All GE OEC systems go through our in-depth process which includes:

  • 300 Point Inspection Of Internal Parts
  • Replacement Of Wear Items
  • New Main Battery Packs
  • New CMOS & GIB Board Level Batteries
  • New Brake Pads
  • New Paint – Complete
  • Factory Calibration
  • Includes FDA Report Of Assembly (Form 2579)
  • Standard 30 Day Warranty, Optional 6 Months & 1 Year Options
  • Shipping Available To All 50 States

On top of our in-depth refurbishing process, Equipped MD offers a unique pricing program with our “Wholesale Direct” pricing structure. For years we have been building c-arms for other equipment distributors and dealers, and are now offering the same pricing direct to healthcare professionals. This allows us to offer you exceptional value, and custom tailor the pricing to your needs & budget. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.

OEC Elite CFD Product Specifications

X-Ray System:

Generator:
  • 60kHz high frequency
  • 15kW power
  • Up to 120kVp
  • Up to 75mA for radiographic film exposure
  • Continuous high level fluoro (HLF) up to 20mA
  • Digital spot up to 75mA
  • Pulsed HLF up to 40mA
  • Full power from standard wall outlet
  • Patented battery buffered design
X-Ray Tube:
  • Rotating anode X-ray tube
  • 0.3mm and 0.6mm focal spots
  • Anode heat capacity: 300,000 HU
  • Anode cooling rate: 85,000 HU/min.
  • Housing heat capacity: 1,600,000 HU
  • Housing cooling: -9″ II = 22,500 HU/min, 12″ II = 22,500 HU/min
Digital Image Orientation:
  • Digitally adjusts image display for live and last image hold
  •  Automatic image update preserves image orientation settings applied during live and last image hold subsequent images
    – Image rotation
    – Image reversal (side-to-side)
    – Image invert (top-to-bottom)
  •  On-screen orientation indicator
  • Fully digital with precise 1 degree rotation increments
PreView Collimator:
  •  On-screen collimator position indication
  • PreView™ iris collimator
  • PreView™ Tungsten rotatable double leaf collimator
  • Adjusts collimators without X-ray exposure
Fluoro Mode:
  • kVp range: 40 -120
  • mA range: 0.2 – 10 normal mode 0.2 – 20 HLF (high level fluoro)
  • Auto and manual fluoro modes
Pulsed Fluoro Mode:
  • kVp range: 40 – 120
  • mA range: 0.2 – 10 normal mode, 0.2-40 HLF
  • Pulse rate: 8 pps
  • Pulse width: 25 ms
  • Auto and manual pulsed fluoroscopy modes
  • Reduces x-ray dose to patient and operator
Digital Spot Mode:
  • kVp range: 40 – 120
  • mA range: Up to 75
  • Automatic exposure termination and automatic image save

Video Imaging System:

21 cm CMOS Flat Panel Detector (CFD):
  • Tri-mode 21 cm/15 cm/11 cm
  • Minimum central resolution (at display):
    – 21 cm: 2.5 lp/mm
    – 15 cm: 3.0 lp/mm
    – 11 cm: 3.3 lp/mm
  • Matrix: 1536 x 1496 total pixels
  • DQE(0): 72%
  • Pixel Pitch: 135.3 μm
  • Removable grid with on-screen detection status
31 cm CMOS Flat Panel Detector (CFD):
  • Tri-mode 31 cm/21 cm/15 cm
  • Minimum central resolution (at display):
    – 31 cm: 1.8 lp/mm
    – 21 cm: 2.2 lp/mm
    – 15 cm: 2.4 lp/mm
  • Matrix: 1548 x 1524 total pixels
  • DQE(0): 72%
  • Pixel Pitch: 198.0 μm
  • Removable grid with on-screen detection status
Precision imaging with Dynamic Range Management (DRM) enhances features of interest while attenuating background noise:
  • Preset Imaging Profiles
    – 9800
    – General
    – Orthopedic
    – Spine
    – Cardiac
    – Vascular
    – Bolus Chase
AutoTrak™ Automatic Brightness Stabilization (ABS)
  • Automatically seeks the subject anatomy anywhere within the imaging field
  • Selects the optimum imaging technique by varying mA, kVp, and gain
  • Automatically adjusts to anatomical size and location
  • Provides uniform image quality throughout the entire image
Image I.Q.:
  • Smart Window
    – Dynamically senses the collimator position and automatically adjusts brightness and contrast to produce high image quality.
  • Smart Metal
    – Allows user to adjust automatic brightness and contrast sensitivity levels to metal
    – Provides optimum image quality even when metal is introduced to the field
  • Tungsten Collimator
    – Denser collimator limits X-ray exposure area
    – Reduces scatter radiation
    – Improves image detail
Image Processing:
  • 1k x 1k x 16 bit image intensifer
Video Monitor:
  • 27 in (69 cm) LCD TFT color display
  • Anti-glare
  • Monitor mounted on an articulating arm
    – 45 in (114 cm) horizontal travel
    – 17 in (43.2 cm) vertical travel
    – 27 in (68.8 cm) forward travel
    – 5° up/5° down tilt
    – Display viewable from all four sides of workstation
    – Horizontal and vertical viewing angle 170°
  • 450 cd/m2 maximum brightness
  • Touch screen system control
  • 2560 x 1440 high resolution display
  • Integrated PIP window to display color DVI-D input

Configurations:

ESP (Expanded Surgical Package) Platform:
  • >Preset Imaging Profiles
    – General
    – Orthopedic
    – Spine
  • >Noise filter with on-screen indicator
  • Minimal difference spatiotemporal noise filter (MDST)
  • Real-time dynamic general purpose range management (GDRM)
  • Automatic digital brightness and contrast control
  • Manual digital brightness and contrast control
  • Negate mode
  • Save and auto-save feature
  • Swap and auto-swap feature
  • Patient information
    – Examination list
    – Customized patient information
  • Set-up functions
    – Acquisitions
    – Image Profile
    – DICOM
    – Network
    – Regional
    – Security
    – Utilities
  • Last image hold
  • 50,000 image storage
  • USB export with DICOM viewer for displaying images on PC platforms
    – Full-size or half-size
    – Web viewable
    – JPEG and BMP
    – DICOM compatible
    – OEC compatible
    – De-identify DICOM images
    – Remove patient information
  • HIPAA SecureView
    – Password protection
    – Blank screen function
    – Delete all patient information
  • >Zoom and pan function
  • Image annotation
  • Measurement
    – Distance
    – Angles
    – Percent stenosis
  • Digital image rotation

Additional Features:

Tech View Monitor:(optional)
  • 10.4” (26.4cm) display, LCD flat panel monitor mounted on mainframe
    – 270° side/side rotation
    – 30° up/ 5° down tilt
    – Horizontal viewing angle 80°, Vertical viewing angle 70°
  • 800 x 600 resolution monitor
Super-C Configuration:
  • Adds Larger “C” for increased orbital rotation (145 degrees)
  • Increased Arc Depth (33″ / 838mm)
MD Configuration:
  • Adds motorized movements of c-arm
Uninterruptible Power:
  • Orderly shutdown Electrical
  • Input power (60 Hz or 50 Hz) 9900 Elite
    – 120V @ 12 A
    – 200V, 220V, 230V, 240V @ 10 A
Regulatory Compliance:
  • U.S. 21 CFR Subchapter K
  • NFPA 99
  • UL 60601-A (CSA/NRTL)
  • IEC60601-1 (plus relevant collateral and particular standards)

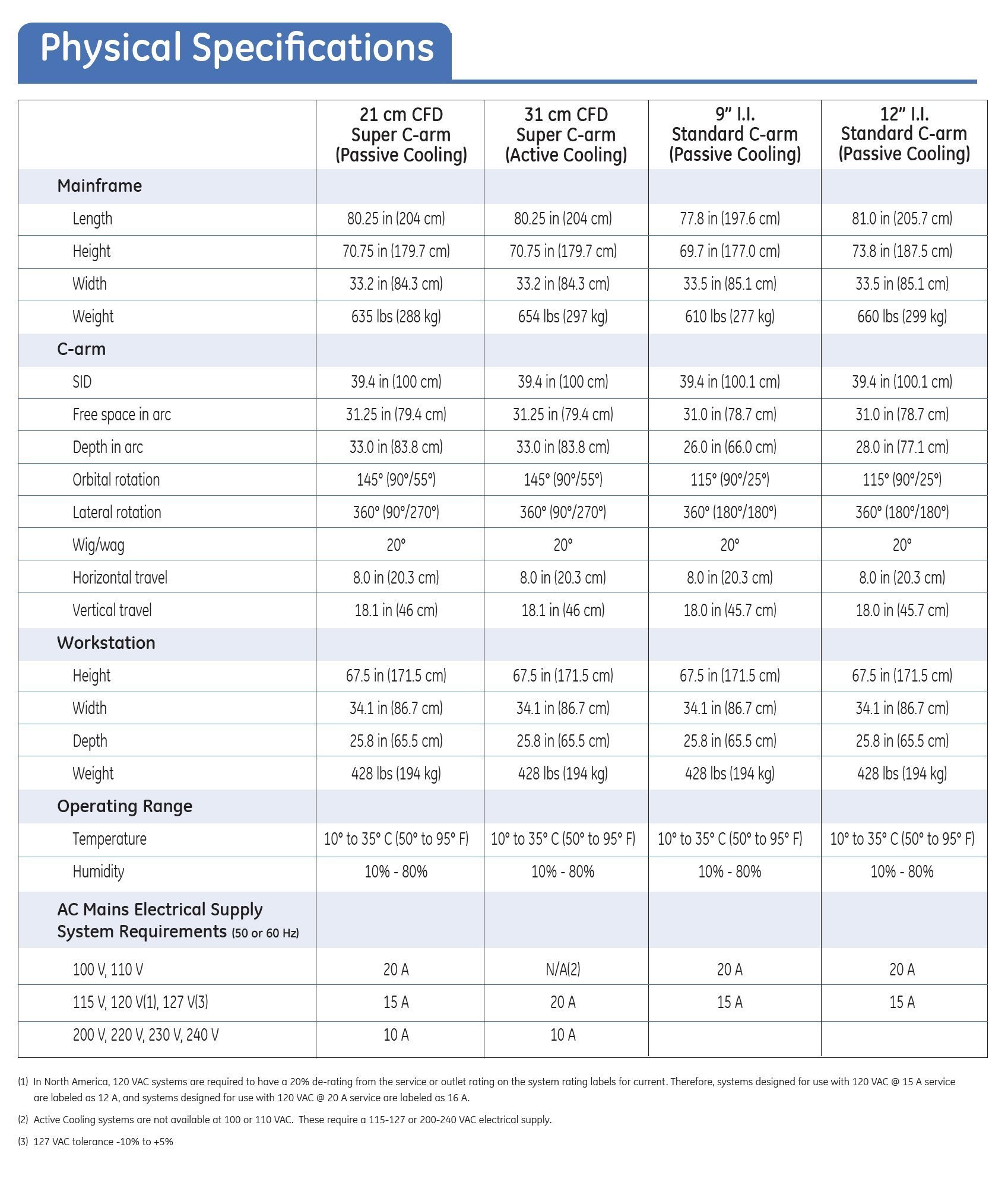

GE OEC Elite Physical Specifications

GE OEC 9800 Physical Specifications

Additional information

Brand

GE OEC

Model

Elite CFD

C-Arm Size

Full Size – 2pc C-Arm & Monitor Cart
