Biodex 810 Brachytherapy C-Arm Table

  • Available New & Refurbished
  • Hospital Grade C-Arm / Imaging Table
  • Designed For Seed Implantation Procedures
  • 5 Movements
  • 500 lb Patient Weight Capacity
  • 2 Year Warranty (new only)

Brochures:

Biodex C-Arm Table Brochure

Description

For image-guided seed implantation.

  • Large radiolucent area, 54″ x 17.5″
  • Industry exclusive Fowler positioning, 0° to 80°
  • Five-axis motorized tabletop positioning
  • Convenient positioning; hand-held and foot-operated controllers
  • Smooth starts and stops programmed into all motorized movements
  • Low profile base for C-Arm clearance
  • Accessory rails
  • Both AC and battery power are standard

Designed and equipped specifically for seed implantation procedures, the Brachytherapy C-Arm Table features a radiolucent extension that provides capability for brachytherapy treatment involving the upper body and general C-Arm applications. Motorized actuation of height, X-Y, lateral roll and Trendelenburg motions of the tabletop, with pre-programmed features, ensure quick and safe tabletop positioning during any phase of a procedure.

The narrow Fiberesin™ tabletop of the Brachytherapy C-Arm Table is cantilevered to accommodate portable or ceiling suspended C-Arms. Radiolucent areas are free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Optional Cassette Tray and X-ray Grid allow for use of overhead or portable x-ray. Functional design provides complete access while minimizing radiation exposure to clinicians.

The Equipped MD Difference.

At Equipped MD we guarantee the best possible pricing on all Biodex products. We will meet or beat any competitors quote, and offer our “wholesale direct” pricing right out of the gate. This allows us to offer you exceptional value, and custom tailor the pricing to your needs & budget. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.

Specifications:
  • Dimensions: 84.5″ l x 25.5″ w (214.6 x 64.8 cm) with OR accessory rails
  • Tabletop: 53″ l x 21″ w (134.6 x 53.3 cm); 84″ l (213.4 cm) with extension
  • Lightweight Extension (for patient transfer only, not for imaging.): 26.5″ l x 21″ w (67.3 x 53.3 cm)
  • Radiolucent Extension: 31″ l x 25.5″ w (78.7 x 64.8 cm) with OR accessory rails
  • Radiolucent Area: 54″ l x 17.5″ w (137.2 x 44.5 cm)
  • Tabletop Material: Three Fiberesin™ sections – each with individual 2″ mattress
  • Table Sections: Four Sections: Adjustable Fowler positioning 0°to 80°; abdominal section with cutout; radiolucent removable extension and a lightweight non-imaging transfer extension for transferring patients on/off the table
  • Mattress: Individual, seamless, 2″ thick (5 cm), one for each section
  • Motions:
    – Height Adjustable: 34″ to 43.5″ (86.4 to 110.5 cm)
    – Tabletop X Motion (head-to-toe): 20″ (51 cm)
    – Tabletop Y Motion (side-to-side): 10″ (25.4 cm)
    – Trendelenburg: 0° to 20°
    – Reverse Trendelenburg: 0° to 20°
    – Lateral Roll: 0° to 20°
    – Fowler Positioning: Adjusts from 0° to 80° with touch handle lock/unlock
  • Controls:
    – Hand Control: activates all motions
    – Foot Control: activates all motions
  • Optional:

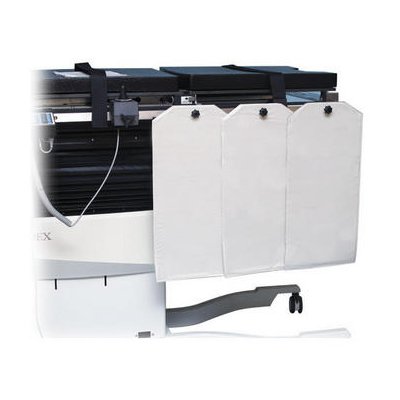

    – X-Ray Film Tray: Removable film cassette tray for 14″ x 17″ film with cassette mask for 10″ x 12″ film. Film cassette tray can be removed from either side of the table.
    – X-Ray Grid: Removable X-Ray grid, 103 line, 8:1 ratio
  • Wheels:
    – Foot End – 3″ (7.62 cm) locking swivel casters
    – Head End – 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails 1.125″ x .375″ (2.86 x .95 cm) on table
    (rails also on table imaging extension)
  • Patient Restraints: Two body straps, two ankle straps
  • Finish: Powder coat
  • Shipping Weight: 877 lb (398.6 kg)
  • Patient Capacity:
    – In urologic position: 500 lb (227 kg)
    – In use with radiolucent extension: 400 lb (181.4)
    – Weight tested to four times the patient load rating.
  • Power: 115 VAC or 230 VAC and battery. Battery automatically charges when table is plugged in. An additional battery can be charged with optional wall-mounted charger.
  • Certifications: ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2 No.: 601.1-M90,
    EN 60601-1, IEC 60601-1-2:2001-09
  • Warranty: Two years parts and labor

Additional information

Brand

Biodex

Model

810 Brachytherapy C-Arm Table

Movements

Height Trendelenburg Lateral Tilt Longitudinal Travel Lateral Travel
